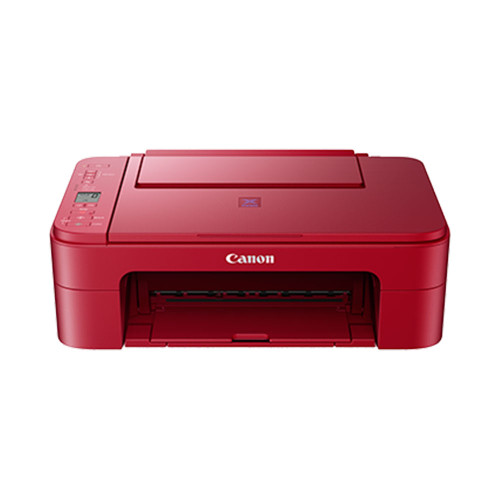

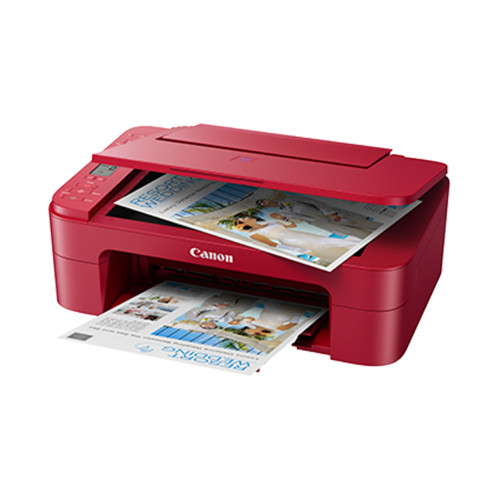

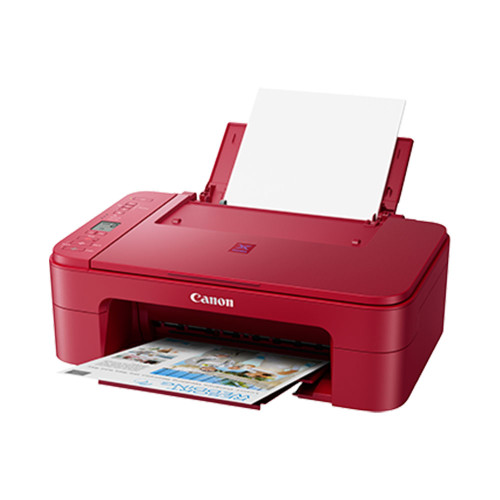

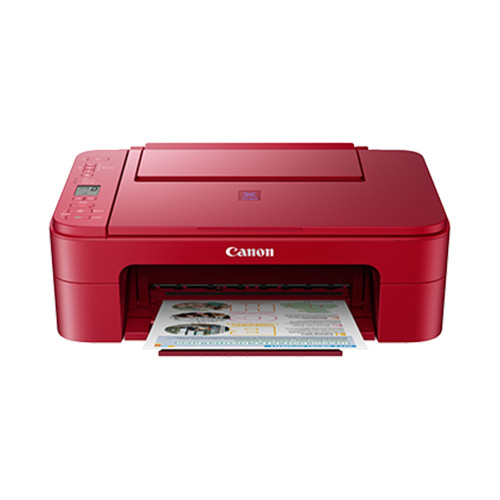

Canon PIXMA E560 Advanced Wireless All-In-One (Print, Scan, Copy, Duplex Print) Low-Cost Printing Inkjet Printer

Not yet rated Write a review
RM440.00
Ex Tax: RM440.00
Product Code:
CANON E560 R
Brand:
Canon

Add to Wish List
Compare this Product

Share

The Ink Efficient E560 / E560R is designed to give you an affordable wireless printing experience at low running cost of up to 800 pages.
Print, Scan, Copy
ISO Standard print speed (A4): up to 9.9 ipm black / 5.7 ipm colour
Hi-speed USB 2.0, Wireless
Recommended print volume: 80 - 400 pages

Low Cost Cartridges
Affordable ink cartridges for high quality printing.

Mobile and Cloud Printing
Experience the freedom to print from social media and scan to cloud storage services using PIXMA Cloud Link accessed via Canon PRINT Inkjet/SELPHY app.

Wireless Connectivity
Print, scan, and perform printer operations with ease, without the need to be tethered to a PC via USB.

Auto-Duplex Printing
Save on time and resources by printing on both sides of the paper automatically.

Maximum Printing Resolution - 4800 (horizontal) x 1200 (vertical) dpi

Print Head / Ink
Type - FINE Cartridge
Number of Nozzles - Total 1,792 nozzles
Ink Droplet Size - 2 pl
Ink Tank: PG-89, CL-99

Print Speed
Document: Col - ESAT / Simplex - approx. 5.7 ipm
Document: B/W - ESAT / Simplex - approx. 9.9 ipm
Photo (4 x 6") - PP-201 / Borderless - approx. 44 sec
Printable Width - Up to 203.2 mm (8 inch), Borderless: Up to 216 mm (8.5 inch)
Printable Area - Borderless Printing - Top / Bottom / Right / Left margin: each 0 mm
(Supported Paper Size: A4, LTR, 4 x 6", 5 x 7", 8 x 10")
Bordered Printing - Top margin: 3 mm, Bottom margin: 5 mm,Left / Right margin: each 3.4 mm (LTR / LGL: Left: 6.4 mm, Right: 6.3 mm)
Bordered Auto 2-sided printing - Top margin: 5 mm, Bottom margin: 5 mm,Left / Right margin: each 3.4 mm (LTR / LGL: Left: 6.4 mm, Right: 6.3 mm)
Recommended Printing Area - Top margin: 32.5 mm / Bottom margin: 33.5 mm
Paper Size - A4, A5, B5, LTR, LGL, 4 x 6", 5 x 7", 8 x 10", Envelopes (DL, COM10),
Custom size (width 89 - 215.9 mm, length 127 - 676 mm)

Paper Handling
Front Tray (Maximum Number)
Plain Paper - A4, A5, B5, LTR = 100, LGL = 10
High Resolution Paper (HR-101N) - A4 = 80
Photo Paper Pro Platinum (PT-101) - 4 x 6" = 20, A4 = 10
Photo Paper Plus Glossy II (PP-201) - 4 x 6" = 20, A4 = 10
Photo Paper Pro Luster (LU-101) - A4 = 10
Photo Paper Plus Semi-Gloss (SG-201) - 4 x 6" = 20, A4, 8 x 10" = 10
Glossy Photo Paper "Everyday Use" (GP-601) - 4 x 6" = 20, A4 = 10
Matte Photo Paper (MP-101) - 4 x 6" = 20, A4 = 10
Envelope - European DL / US Com. #10 = 5

Auto 2-sided printing
Type Plain Paper
Size A4, A5, B5, LTR

Paper Weight - Front Tray
Plain Paper: 64 - 105 g/m2, Canon specialty paper: max paper weight: approx. 300 g/m2
(Photo Paper Pro Platinum PT-101)
Ink End Sensor - Dot count
Print Head Alignment - Manual

Scan
Scanner Type - Flatbed
Scanning Method CIS (Contact Image Sensor)
Optical Resolution - 1200 x 2400 dpi
Selectable Resolution - 25 - 19200 dpi
Scanning Bit Depth (Input / Output) Grayscale -16 / 8-bits / Colour - 48 / 24-bits (RGB each 16 / 8-bits )
Line Scanning Speed - Grayscale: 1.2 ms/line (300 dpi) / Colour: 3.5 ms/line (300 dpi)

Scanning Speed
Reflective
A4 Colour / 300 dpi - Approx. 14 sec

SCAN / COPY Maximum Document Size
Flatbed - A4 / LTR (216 x 297 mm)

Compatible Media
Size A4, LTR, 4 x 6" (PP-201) Type - Plain Paper
Photo Paper Plus Glossy II (PP-201) (4 x 6")
Image Quality Plain Paper - Fast, Standard

Copy Speed
Document: Colour sFCOT / Simplex - approx. 25 sec
Document: Colour sESAT / Simplex - Approx. 2.5 ipm

Multiple Copy
Black / Colour - 1 - 21 pages

Network
Protocol - TCP / IP
Wireless Network Type - IEEE 802.11n / IEEE 802.11g / IEEE 802.11b
Frequency Band - 2.4 GHz
Channel - 1 - 13
Range - indoor 50 m (depends on the transmission speed and conditions)
Security - WEP 64 / 128-bit, WPA-PSK (TKIP / AES), WPA2-PSK (TKIP / AES)

System Requirements
Windows - Windows 8 / Windows 7 / Windows XP / Windows Vista
Macintosh - Mac OS X 10.6.8 and later

General Specifications
Interface - Wireless LAN IEEE 802.11b/g/n, USB 2.0 Hi-Speed
Google Cloud Print - Available
PIXMA Printing Solutions - Available
Operating Environment - Temperature: 15 - 30°C / Humidity: 10 - 80% RH (no dew condensation)
Storage Environment - Temperature: 0 - 40°C / Humidity: 5 - 95% RH (no dew condensation)
Acoustic Noise (PC Print) - Photo (4 x 6")*11 - approx. 42.5 dB(A)
Power - AC 100 - 240 V, 50/60 Hz
Power Consumption - Standby (scanning lamp is off)
Wireless LAN connection to PC - Approx. 1.7 W
OFF - Approx. 0.3 W

Copying
Wireless LAN connection to PC - Approx. 16 W
Environment Regulation - RoHS (EU, China), WEEE (EU)

Dimension (W x D x H)
approx. 449 x 304 x 152 mm

Weight
approx. 5.4 kg

Tags:

LABEL PRINTER SPECIFICATION
Print Speed Document: Col ESAT / Simplex approx. 5.7 ipm Document: B/W ESAT / Simplex approx. 9.9 ipm Photo (4 x 6") PP-201 / Borderless approx. 44 sec
Print Resolution 4800 (horizontal)*1 x 1200 (vertical) dpi
Type Styles Type : FINE Cartridge Number of Nozzles : Total 1,792 nozzles Ink Droplet Size : 2 pl Ink Tank : PG-89, CL-99
PRINTING SPECIFICATIONS
Power AC 100 - 240 V, 50/60 Hz
Power Consumption Standby (scanning lamp is off)Wireless LAN connection to PC Approx. 1.7 W OFF : Approx. 0.3 W Copying*12 Wireless LAN connection to PC Approx. 16 W
CONNECTIVITY
Network Chipset Protocol TCP / IP
COMMUNICATIONS
Wireless Network Type IEEE 802.11n / IEEE 802.11g / IEEE 802.11b Frequency Band 2.4 GHz Channel*10 1 - 13 Range indoor 50 m (depends on the transmission speed and conditions) Security WEP 64 / 128-bit, WPA-PSK (TKIP / AES), WPA2-PSK (TKIP / AES)
DIMENSIONS AND WEIGHT
Dimensions (W x D x H) approx. 449 x 304 x 152 mm
Weight approx. 5.4 kg
WHAT'S INCLUDED
What's in the box 1 x Canon Pixma E560 All In One Inkjet Printer (Red)
Warranty 2 years
